作者: soccerism 時間: 2023-6-15 08:17 標題: 呢塊H310 既底板換新既 PCI-E SSD 得唔得
原本隻256G 唔夠用了, 想隻 M.2 2280 PCIe Gen4x4 1T 既落去,
唔知以下呢塊底板食唔食到?? 只係用緊Pentium G5400
ASUS H310M-E
https://www.asus.com/motherboard ... e-h310m-e/techspec/
作者: raylee 時間: 2023-6-15 08:49
原本隻256G 唔夠用了, 想隻 M.2 2280 PCIe Gen4x4 1T 既落去,
唔知以下呢塊底板食唔食到?? 只係用緊Pentium ...
soccerism 發表於 2023-6-15 08:17
with M Key
作者: oneisall 時間: 2023-6-15 15:08
1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)*1
*1 When a device in SATA mode is installed on the M.2 socket, SATA_2 port cannot be used.
Due to the Chipset limitation, when a M.2 device is installed in PCIe mode, the socket is set
to PCIe 2.0.
用到不過會慢D
作者: edwin5415 時間: 2023-6-15 15:30
呢塊板m.2只可以行 x2 PCIE mode
就算你買頂級最高速m.2返黎，都只能行x2 PCIE mode
作者: finepix 時間: 2023-6-16 10:15

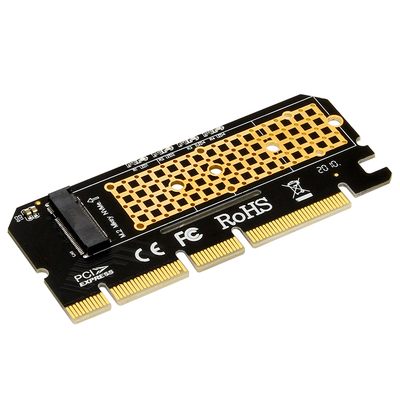

如果只係用內置display, 又想加多條m2 ssd. 可以淘塊m2轉PCIE轉接卡, 10人仔左右, 行到x4速度.
圖片附件: O1CN01W2kiku26yqg2VvHgJ_!!2200755517731.jpg_400x400.jpg (2023-6-16 10:13, 85.58 KB) / 下載次數 74https://h1.hkepc.com/forum/attachment.php?aid=2377541&k=b959aab01db147cfef908770fb071d04&t=1781087753&sid=LI9b113Hqn
