作者: peh817 時間: 2018-4-28 23:36 標題: Windows 10花畫面求救
本帖最後由 peh817 於 2018-4-30 01:26 編輯
我用緊i5 3470內顯嘅
係bios個陣都正常顯示
但一入windows 就成個畫面花晒咩野都睇唔到
用安全模式就冇問題
我估就係intel hd graphics driver出事啦
咁我係安全模式刪dirver 又重裝過windows
但係入返windows佢會自動幫我裝返個driver
如果冇driver d字又會蒙左, 有driver就花畫面
可以點搞
呢個情況係只係壞software
定係底板或cpu都有問題先會咁
冇理由內顯都會唔夾driver掛
thx
作者: 丨虫虫丨 時間: 2018-4-29 01:05
drivers咩版本
作者: peh817 時間: 2018-4-29 02:14
回覆 2# 丨虫虫丨
用緊15.33.46.4885
我試過.43xx都係唔得
再舊d嘅driver就搵唔到

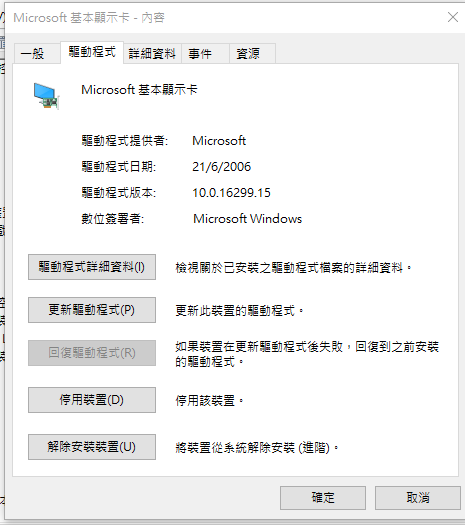

宜加我用安全模式
再係裝置管理員停用intel hd graphic
暫時解決左windows自動幫我裝壞driver呢個問題
但始終係治標唔治本
作者: snap820 時間: 2018-4-29 02:25
提示: 作者被禁止或刪除 內容自動屏蔽
作者: 丨虫虫丨 時間: 2018-4-29 02:33
即係15.33.46.4885係有問題嘅版本?
有冇試過主板最初附帶個drivers版本?
作者: 觀星是答案 時間: 2018-4-29 08:17
多數都係硬件有事
先試下換 ram
唔得就可能係 cpu 或底板問題
作者: PT100 時間: 2018-4-29 10:30
回覆 6# 觀星是答案
I second C-hing's conclusion! It's caused by hardware
1. First check ram, ram defect or bad contact might cause faded display.
2. If symptoms remains after ram replaced, the IGD of CPU might be defected.
3. If CPU working normal on other motherboard, then the display output of motherboard damaged.
作者: drlui 時間: 2018-4-29 10:42
Force Change to "標準VGA 繪圖卡"
Reboot, and Then uninstall Intel Driver
After Reboot Again install Back Intel Driver
作者: peh817 時間: 2018-4-29 19:33
唔該晒咁多位
我試過完全移除driver再重裝Driver
又試過換過第二條ram
都係唔得,要靠停用intel hd graphics先冇花畫面
作者: drlui 時間: 2018-4-29 19:49
試下用INTEL PROCESSOR DIAGNOSTIC TOOLS - TEST CPU
試下用WINDOWS MEMORY DIAGNOSTIC TOOLS - TEST RAM
作者: 丨虫虫丨 時間: 2018-4-29 20:28
不如試下呢個version
https://downloadcenter.intel.com ... 5-33-?product=81501
作者: peh817 時間: 2018-4-29 20:47
回覆 10# drlui
thanks
我照你咁講去試
cpu同ram都冇問題
但我唔太明點解cpu test opencl個度話我non-intel gpu detected
詳細test結果
--- Genuine Intel Test ---
...
Version 1.0.14.64b.W
...
Expected -- GenuineIntel
Detected -- GenuineIntel
Genuine Intel CPU Module Success
--- Brand String Test ---
...
Version 1.0.17.64b.W
...
IntelR CoreTM i5-3470 CPU 3.20GHz
Brand String Module Success....
--- Cache Test ---
...
Version 1.0.14.64b.W
...
--- Reading Cache Size ---
- Detected L1 Data Cache Size -- 32
- Detected L1 Inst Cache Size -- 32
- Detected L2 Cache Size -- 256
- Detected L3 Cache Size -- 6144
Cache Module Success
--- MMXSSE Test ---
...
Version 1.0.19.64b.W
...
..DetectUtils64 DLL Version - 1.1.2
--- Determining MMX - SSE capabilities ---
..MMX is supported on this CPU..
..SSE is supported on this CPU..
..SSE2 is supported on this CPU..
..SSE3 is supported on this CPU..
..SSSE3 is supported on this CPU..
..SSE4.1 is supported on this CPU..
..SSE4.2 is supported on this CPU..
Testing MMX
Dot Product computed using C code 506
Dot Product computed using MMX intrinsics 506
MMX Dot Product Computation Test Passed
Passed MMX Test
Testing SSE
Dot Product computed using C code 506
Dot Product computed using SSE intrinsics 506
SSE Dot Product Computation Test Passed
Passed SSE Test
Testing SSE2
Complex Product computed using C code 23.00 -2.00i
Complex Product computed using SSE2 code 23.00 -2.00i
SSE2 Complex Product Computation Test Passed
Passed SSE2 Test
Testing SSE3
Complex Product using C code 23.00 -2.00i
Complex Product using SSE3 code 23.00 -2.00i
SSE3 Complex Product Computation Test Passed
Passed SSE3 Test
Testing SSSE3
SSSE3 Absolute Value Tests Passed
SSSE3 Arithmetic Tests Passed
SSSE3 Dot Product Test Passed
Passed SSSE3 Test
Testing SSE4.1
SSE4.1 Blend Tests Passed
SSE4.1 Min Max Tests Passed
SSE4.1 Insert Bit Tests Passed
SSE4.1 Extract Bit Tests Passed
SSE4.1 Bitwise Comparison Tests Passed
SSE4.1 Dot Product Test Passed
SSE4.1 Arithmetic Tests Passed
SSE4.1 Bit Conversion Tests Passed
SSE4.1 Bit Compare Test Passed
Passed SSE4.1 Test
Testing SSE4.2
SSE4.2 Bit Compare Test Passed
SSE4.2 Calculate Bit Set to 1 Test Passed
SSE4.2 CRC Test Passed
Passed SSE4.2 Test
MMXSSE Module Success
--- Integrated Memory Controller Test ---
...
Version 1.0.10.64b.W
...
StatusFMmatched 0
--- Reading Memory Size ---
Detected Memory Size is -- 12.00GB
--- Subtest - Memory Size Test Passed ---
--- Integrated Memory Controller Stress Test ---
Memory to be allocated 1048576 byte
Memory Allocated.
Test 1 Ones and Zeros Moving Inversions write operations - Passed
Test 1 Ones and Zeros Moving Inversions verification operations - Passed
Test 2 32Bits Sliding Ones write operations - Passed
Test 2 32Bits Sliding Ones verification operations - Passed
Test 3 32Bits Sliding Zero write operations - Passed
Test 3 32Bits Sliding Zero verification operations - Passed
Memory Deallocated.
--- Subtest - Memory Stress Test Passed ---
--- Integrated Memory Controller Stress Test Passed ---
Parallel_PrimeNum_i5
Version - 1.0.0.8
Parsing Parallel_PrimeNum_i5.xml
Module VisCollisions.exe Disabled
Running Module Math_PrimeNum.exe -s 20 -resultName Math_PrimeNum_Parallel_PrimeNum_i5_1_Results.txt
Module VisParticle.exe Disabled
Module VisParticle.exe Not Tested
Module VisCollisions.exe Not Tested
--- Prime Number Generation Test ---
...
Version 1.0.17.64b.W
...
..DetectUtils64 DLL Version - 1.1.2
AVX is supported in your OS
Max AVX supported AVX
Ops Per Sec CycleRun Error Timesec
18921.5 1 0 2
37100 2 0 3
36999 3 0 4
18508 4 0 6
37063 5 0 7
36964 6 0 8
37099 7 0 9
18623 8 0 11
37123 9 0 12
36720 10 0 13
18824 11 0 15
75859 14 0 16
127295 19 0 17
102135 23 0 18
128687 28 0 19
103462 32 0 20
Operation Per Second -- 103462
Error -- 0
Prime Number Generation Test Passed
Module Math_PrimeNum.exe Completed - Pass
Result - Pass
Parallel_FP_i5
Version - 1.0.0.8
Parsing Parallel_FP_i5.xml
Running Module Math_FP.exe -s 20 -resultName Math_FP_Parallel_FP_i5_1_Results.txt
Module VisParticle.exe Disabled
Module VisCollisions.exe Disabled
Module VisCollisions.exe Not Tested
Module VisParticle.exe Not Tested
--- Floating Point Test ---
...
Version 1.0.16.64b.W
...
..DetectUtils64 DLL Version - 1.1.2
AVX is supported in your OS
Max AVX supported AVX
FMA3 not supported
MFLOPS CycleRun Error Timesec
318.95 6379 0 1
675.05 19880 0 2
652.3 32926 0 3
696.05 46847 0 4
698.25 60812 0 5
688.1 74574 0 6
698.15 88537 0 7
698.25 102502 0 8
698.15 116465 0 9
692.95 130324 0 10
687.3 144070 0 11
697.95 158029 0 12
697.35 171976 0 13
699.3 185962 0 14
699.6 199954 0 15
688.2 213718 0 16
696.6 227650 0 17
699.25 241635 0 18
699.65 255628 0 19
699.1 269610 0 20
Million Floating Points per Second MFLOPS -- 699.1
Error -- 0
Floating Point Test Passed
Module Math_FP.exe Completed - Pass
Result - Pass
Parallel_Math_i5
Version - 1.0.0.8
Parsing Parallel_Math_i5.xml
Running Module Math_FP.exe -s 90 -resultName Math_FP_Parallel_Math_i5_1_Results.txt
Running Module FMA3.exe -s 90 -resultName FMA3_Parallel_Math_i5_1_Results.txt
Running Module AVX.exe -s 90 -resultName AVX_Parallel_Math_i5_1_Results.txt
Running Module Math_PrimeNum.exe -s 90 -resultName Math_PrimeNum_Parallel_Math_i5_1_Results.txt
--- FMA3 Test ---
...
Version 1.0.16.64b.W
...
..DetectUtils64 DLL Version - 1.1.2
--- CPU Features Detection ---
..FMA3 is NOT supported by this CPU..
..FMA3 is supported by this Operating System..
FMA3 Test - Not Tested
FMA3 Module Success
Module VisCollisions.exe Disabled
Module VisParticle.exe Disabled
Module FMA3.exe Completed - Pass
Module VisCollisions.exe Not Tested
Module VisParticle.exe Not Tested
--- Floating Point Test ---
...
Version 1.0.16.64b.W
...
..DetectUtils64 DLL Version - 1.1.2
AVX is supported in your OS
Max AVX supported AVX
FMA3 not supported
MFLOPS CycleRun Error Timesec
11.85 237 0 1
1.3 263 0 2
1.55 294 0 3
1.95 333 0 4
1.6 365 0 5
1.8 401 0 6
1.95 440 0 7
1.7 474 0 8
2.2 518 0 9
1.9 556 0 10
1.55 587 0 11
2 627 0 12
1.9 665 0 13
2 705 0 14
1.9 743 0 15
1.8 779 0 16
1.65 812 0 17
1.3 838 0 18
2.1 880 0 19
2.05 921 0 20
1.5 951 0 21
1.5 981 0 22
1.5 1011 0 23
2 1051 0 24
1.75 1086 0 25
1.85 1123 0 26
1.55 1154 0 27
1.7 1188 0 28
1.65 1221 0 29
2.05 1262 0 30
1.85 1299 0 31
1.75 1334 0 32
1.35 1361 0 33
1.6 1393 0 34
2.05 1434 0 35
1.85 1471 0 36
1.75 1506 0 37
1.9 1544 0 38
1.9 1582 0 39
2.35 1629 0 40
1.4 1657 0 41
1.5 1687 0 42
1.35 1714 0 43
1.3 1740 0 44
1.2 1764 0 45
1.95 1803 0 46
1.85 1840 0 47
2.2 1884 0 48
1.5 1914 0 49
1.25 1939 0 50
1.55 1970 0 51
1.45 1999 0 52
2 2039 0 53
2.1 2081 0 54
2.15 2124 0 55
1.85 2161 0 56
2.25 2206 0 57
2.1 2248 0 58
1.7 2282 0 59
1.9 2320 0 60
2.05 2361 0 61
2.65 2414 0 62
2 2454 0 63
2.3 2500 0 64
2.5 2550 0 65
2.2 2594 0 66
2.5 2644 0 67
2.3 2690 0 68
2.35 2737 0 69
2.2 2781 0 70
2.35 2828 0 71
2.3 2874 0 72
2.35 2921 0 73
1.9 2959 0 74
1.95 2998 0 75
2 3038 0 76
1.6 3070 0 77
1.95 3109 0 78
1.85 3146 0 79
1.8 3182 0 80
1.6 3214 0 81
1.8 3250 0 82
1.95 3289 0 83
1.6 3321 0 84
1.75 3356 0 85
1.75 3391 0 86
1.55 3422 0 87
1.15 3445 0 88
1.5 3475 0 89
1.25 3500 0 90
Million Floating Points per Second MFLOPS -- 1.25
Error -- 0
Floating Point Test Passed
--- Prime Number Generation Test ---
...
Version 1.0.17.64b.W
...
..DetectUtils64 DLL Version - 1.1.2
AVX is supported in your OS
Max AVX supported AVX
Ops Per Sec CycleRun Error Timesec
8814 1 0 1
7492 2 0 2
8167 3 0 3
3897.5 4 0 5
7472 5 0 6
3419.5 6 0 8
3730.5 7 0 10
3718 8 0 12
3787.5 9 0 14
2579.667 10 0 17
3701.5 11 0 19
2337.333 12 0 22
3724.5 13 0 24
2419.667 14 0 27
2304.5 15 0 29
4468 16 0 30
2079 17 0 32
2175.5 18 0 34
2296 19 0 36
2122.5 20 0 38
4315 21 0 39
2009 22 0 41
2040.5 23 0 43
2120 24 0 45
2088.5 25 0 47
1297 26 0 50
1976.5 27 0 52
2104.5 28 0 54
1353.333 29 0 57
2113 30 0 59
2145.5 31 0 61
19895.5 32 0 63
19275.5 33 0 65
19615 34 0 67
37093 35 0 68
18916 36 0 70
18664.5 37 0 72
19473.5 38 0 74
19023.5 39 0 76
41445 40 0 77
18894.5 41 0 79
37436 42 0 80
19669 43 0 82
19103 44 0 84
36543 45 0 85
28212 46 0 86
133265 51 0 87
98169 55 0 88
109465 59 0 89
108456 63 0 90
Operation Per Second -- 108456
Error -- 0
Prime Number Generation Test Passed
Module Math_FP.exe Completed - Pass
Module Math_PrimeNum.exe Completed - Pass
--- AVX Test ---
...
Version 2.0.15.64b.W
...
..DetectUtils64 DLL Version - 1.1.2
--- CPU Features Detection ---
..AVX is supported by this CPU..
..AVX2 is NOT supported by this CPU..
..AVX512BW is NOT supported by this CPU..
..AVX512CD is NOT supported by this CPU..
..AVX512DQ is NOT supported by this CPU..
..AVX512ER is NOT supported by this CPU..
..AVX512F is NOT supported by this CPU..
..AVX512IFMA52 is NOT supported by this CPU..
..AVX512PF is NOT supported by this CPU..
..AVX512VBMI is NOT supported by this CPU..
..AVX512VL is NOT supported by this CPU..
..AES is supported by this CPU..
..PCLMULQDQ is supported by this CPU..
..AVX is supported by this Operating System..
Most Advanced AVX Feature Detected.. AVX
Testing Most Advanced AVX Feature - AVX....
AVX Test Result --- PASS
Testing AES
AES Test Result --- PASS
Testing PCLMULQDQ
PCLMULQDQ Test Result --- PASS
AVX Module Success
Module AVX.exe Completed - Pass
Result - Pass
Parallel_GPUStressW_i5
Version - 1.0.0.8
Parsing Parallel_GPUStressW_i5.xml
Running Module AVX.exe -s 30 -resultName AVX_Parallel_GPUStressW_i5_1_Results.txt
Running Module FMA3.exe -s 30 -resultName FMA3_Parallel_GPUStressW_i5_1_Results.txt
Module GPUStressW.exe Disabled
--- FMA3 Test ---
...
Version 1.0.16.64b.W
...
..DetectUtils64 DLL Version - 1.1.2
--- CPU Features Detection ---
..FMA3 is NOT supported by this CPU..
..FMA3 is supported by this Operating System..
FMA3 Test - Not Tested
FMA3 Module Success
Module GPUStressW.exe Not Tested
Module FMA3.exe Completed - Pass
--- AVX Test ---
...
Version 2.0.15.64b.W
...
..DetectUtils64 DLL Version - 1.1.2
--- CPU Features Detection ---
..AVX is supported by this CPU..
..AVX2 is NOT supported by this CPU..
..AVX512BW is NOT supported by this CPU..
..AVX512CD is NOT supported by this CPU..
..AVX512DQ is NOT supported by this CPU..
..AVX512ER is NOT supported by this CPU..
..AVX512F is NOT supported by this CPU..
..AVX512IFMA52 is NOT supported by this CPU..
..AVX512PF is NOT supported by this CPU..
..AVX512VBMI is NOT supported by this CPU..
..AVX512VL is NOT supported by this CPU..
..AES is supported by this CPU..
..PCLMULQDQ is supported by this CPU..
..AVX is supported by this Operating System..
Most Advanced AVX Feature Detected.. AVX
Testing Most Advanced AVX Feature - AVX....
AVX Test Result --- PASS
Testing AES
AES Test Result --- PASS
Testing PCLMULQDQ
PCLMULQDQ Test Result --- PASS
AVX Module Success
Module AVX.exe Completed - Pass
Result - Pass
...
Version 1.0.14.64b.W
...
... Loading CPU ...
CPULoad Success
--- CPU Frequency Test ---
...
Version 1.0.19.64b.W
...
Expected CPU Frequency is -- 3.20
Detected CPU Frequency is -- 3.35576
Expected Base Clock -- 100 MHz
Detected Base Clock -- 101.69 MHz
CPU Frequency Test Passed
QPI link rate Test - Not supported.
Skipping QPI link rate Test.
--- Intel Graphics Device ---
...
Version 1.0.13.64b.W
...
matched gen3 model0x3A
--- Querying for IntelR Integrated Graphics Device IGD ---
..IntelR Integrated Graphics Device presence detected..
..on Core Gen 3 product..
..IGD Vendor ID -- 8086h
..IGD Device ID -- 152h
..IGD Revision ID -- 9h
..IGD Graphics Translation Table Memory Mapped Range Address -- f7800004h
..IGD Graphics Memory Range Address -- e000000ch
..IGD Subsystem Vendor ID -- 1849h
..IGD Subsystem ID -- 152h
..IGD Video BIOS ROM Address -- 0h
..IGD Graphics Mode Select -- 8h
..IGD VGA Disable IVD -- 0b
..IGD Frame Buffer Size based upon returned GMS value -- 256MB
Model in hex 0x3a
..IntelR Integrated Graphics Device Presence Detection Passed..
Intel Graphics Device Module Success
--- Platform Controller Hub Test ---
...
Version 1.0.11.64b.W
...
LPC deviceID 0x1e49
Chipset IntelR B75 Express Chipset
Chipset Stepping C1
No device connected to PCI-to-PCI Bridge Controller
1 device connected to PCI Express Port 1
1 USB xHCI
No device connected to PCI Express Port 2
1 device connected to PCI Express Port 6
1 Standard SATA AHCI Controller
1 device connected to PCI Express Port 7
1 Realtek PCIe GBE Family Controller
1 device connected to SATA Controller 1
1 TOSHIBA DT01ACA100
3 USB devices detected
1 USB Composite Device
2 USB Composite Device
3 USB Composite Device
2 device connected to Intel High Definition Audio Controller
1 High Definition Audio
2 IntelR
Platform Controller Hub Test Completed
--- IntelR spbc Module Test --
...
Version 1.0.9.64b.W
...
..Retrieved Processor Manufacturer
GenuineIntel
..Retrieved Processor Brand String
IntelR CoreTM i5-3470 CPU 3.20GHz
IntelR spbc Module Test -- Pass --
作者: peh817 時間: 2018-4-29 21:04
回覆 11# 丨虫虫丨
我試晒15.33.46.4885, 15.33.43.4425, 15.33.45.4653都唔得
得m$最原始果driver就冇花畫面
https://h1.hkepc.com/forum/attachment.php?aid=2055914&k=0f549e24d54eb1ae85d675cf5ab2ade3&t=1781495863&sid=484AxPikTU

作者: 丨虫虫丨 時間: 2018-4-29 21:10
本帖最後由 丨虫虫丨 於 2018-4-29 21:28 編輯
回覆 丨虫虫丨
我試晒15.33.46.4885, 15.33.43.4425, 15.33.45.4653都唔得
得m$最原始果driver就冇花畫 ...
peh817 發表於 2018-4-29 21:04
可唔可以比一比隔離詳細信息個硬體識別碼我
或者如果唔抗拒大陸軟件,試下呢個,唔同驅動精靈果D,100%冇捆綁,用20開頭個version(如果有)
作者: peh817 時間: 2018-4-29 23:54
回覆 14# 丨虫虫丨
windows 自動幫我裝10.18.10.4252 都係唔得XD
識別碼:
PCI\VEN_8086&DEV_0152&SUBSYS_01521849&REV_09
PCI\VEN_8086&DEV_0152&SUBSYS_01521849
PCI\VEN_8086&DEV_0152&CC_030000
PCI\VEN_8086&DEV_0152&CC_0300
作者: 丨虫虫丨 時間: 2018-4-30 00:16
本帖最後由 丨虫虫丨 於 2018-4-30 00:35 編輯
回覆 15# peh817
我睇過,就算係我叫你試果隻software,都係匹配10.18.10.4425比你,你已經試過有問題。
你咩主板,試左主板比過個version未?
另外想問下係咪最近洗過機?幾時出事?出事前做過咩?
仲有你話係i5 3450,但10#顯示你係3470(應該唔關事),實際型號究竟係幾多
作者: peh817 時間: 2018-4-30 01:25
本帖最後由 peh817 於 2018-4-30 01:27 編輯
回覆 16# 丨虫虫丨
我近排換過塊二手底板加重裝過Windows黎
應該係3470先啱,我打錯左
我試埋跟底板win7 driver 15.28.6.64.2857
都係唔得
之後上網搵到個9.17.10.4229都係唔得
作者: 丨虫虫丨 時間: 2018-4-30 01:46
本帖最後由 丨虫虫丨 於 2018-4-30 02:21 編輯
回覆 17# peh817
可唔可以分個新分區(hdd都得),裝個全新Windows試下?怕係System文件有事/衝突,如果有WinPE就仲方便,直接用WinPE試。
一次過換底板加重裝Windows唯有用排除法
作者: peh817 時間: 2018-4-30 21:34
我試過係另一隻hdd分割個partition黎裝windows
都係唔得
作者: 丨虫虫丨 時間: 2018-4-30 21:43
粒U幾時開始用?如果一直都用開冇事,塊二手板有事嘅機會率比較大。
作者: 七彩小生 時間: 2018-5-1 09:13
插display card 去另一部pc 試
作者: peh817 時間: 2018-5-1 21:13
粒cpu我諗都用左5年左右
本身我用開獨顯
係張卡壞左我先轉用內顯,我之前都冇用開內顯
但我好耐以前係舊板試過用內顯開機係冇問題
作者: 丨虫虫丨 時間: 2018-5-1 21:55
本帖最後由 丨虫虫丨 於 2018-5-1 22:07 編輯
好有可能係板問題,換另一種輸出接口得唔得?
係啦,唔記得問,你個Windows係咪Microsoft原版(冇精簡過)?
作者: peh817 時間: 2018-5-2 12:52
晏d試下插第二個port
我直接係microsoft個網download 之後裝windows 10 pro
我唔識咩係精簡版windows
另外之試過用teamviewer遙控我部機
係另一部機都係咩都睇唔到 成個mon黑晒
